Pellet Presses Sold

CFE supply Pellet Presses that are all fully refurbished to a high stand and run in at our UK factory to ensure we deliver a high quality press to you.

SOLD MACHINERY

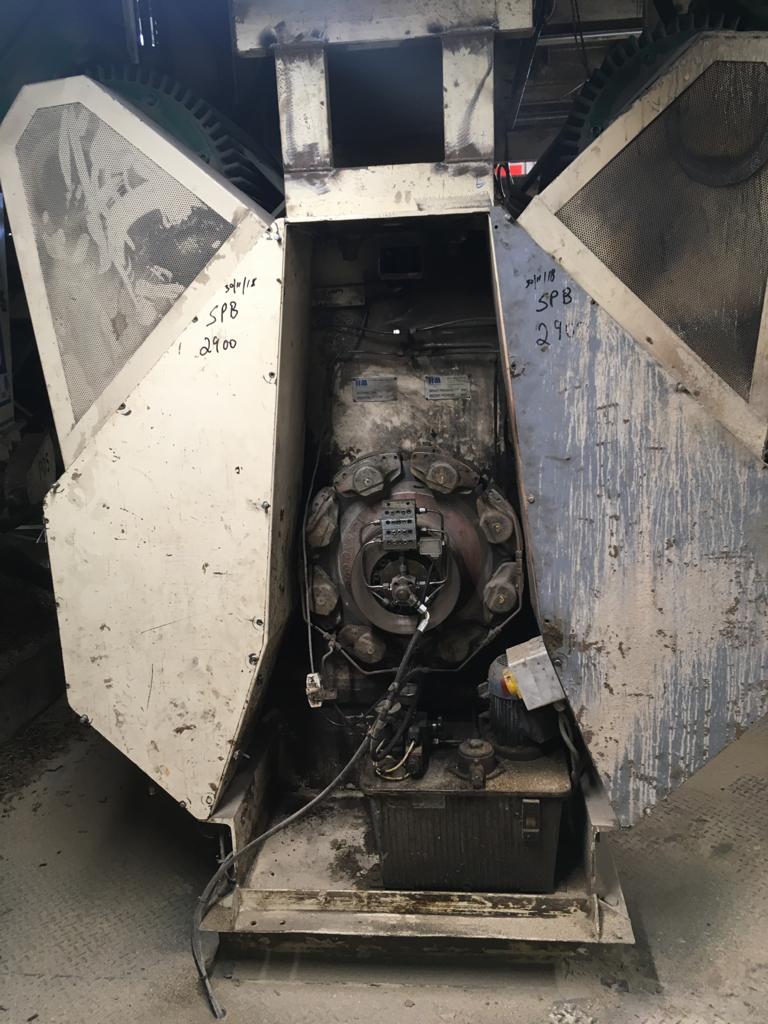

Factory Refurbished Paladin 1600 Complete with:

  • 2 x motors 110kw
  • Dump chute
  • 1 x complete set roll assemblies
  • Hydraulic overload protection
  • Manual roll adjustment
  • Feed cone
  • Manual die & roll hoist
  • Front Roll Support Plate
  • Fully stripped down, cleaned and re-built
  • Gaskets and Seals replaced
  • Bearings checked and replaced, where necessary
  • Main components checked and replaced, where necessary
SOLD

Factory Refurbished Paladin 1200 Wide Complete with:

  • 2 x 90Kw 1500 rpm motors
  • Dump chute
  • 1 complete set roll assemblies
  • Hydraulic overload protection
  • Manual roll adjustment
  • Feed cone
  • Manual die & roll hoist
  • Front Roll Support Plate
  • Lubrication system for press rolls and main shaft
  • Sandblasted and painted (colour to be agreed)
  • Die size I/D 650 mm x 175 mm Working Width
SOLD

Factory refurbished CPM 7932-11 (2001 model)

  • 250Kw 1500 rpm Motor
  • Fully stripped down, cleaned and re-built
  • Bearings checked and replaced, where necessary
  • Main components checked and replaced, where necessary
  • Manual roll adjustment
  • All New Bearings fitted (2 x Quill, 2 x Pinion, Mainshaft)
  • All seals, Wear Rings & O Rings replaced
  • Feed Cone & fasteners
  • Manually operated die & roller hoist
  • 1 x Complete Roll Assemblies
  • Sandblasted and Painted
  • Operated 10,000 hours from new
SOLD

NEW IN! Fully Refurbished CPM 7932-9 Pellet Press (can be converted to 7932-11)

  • 250KW Motor
  • Fully Stripped down and assessed
  • All gaskets, seals & bearings checked and replaced if necessary
  • Lineator
  • Pneumatic Die Hoist
  • Pellet Chamber door fitted with dump chute
  • 50 kg Roller Grease system
  • 2 x Dimple Rollers
  • Oil Cooler
  • Tool Box
  • 1 die included
SOLD

Fully Rebuilt in 2017, CPM 7730-8 complete with:

  • 200 KW Motor 1500 rpm
  • New Gearbox Casing (2017)
  • New Main Gear (2017)
  • New Grease Mainshaft (2017)
  • New Pinion Shaft and Bearings (2017)
  • New Shearpin Housing (2017)
  • New Main & Quill Bearings (2017)
  • 1 Complete set of roll assemblies
  • Manually operated die & roller hoist
  • Manual Roll Adjustment
  • Die Clamps
  • Will be Fully Refurbished
  • Sandblasted and painted
SOLD

Factory Refurbished Paladin 1200 Standard Complete with:

  • 2 x 90Kw 1500 rpm motors
  • Dump chute
  • 1 complete set roll assemblies
  • Hydraulic overload protection
  • Manual roll adjustment
  • Feed cone
  • Manual die & roll hoist
SOLD

PTN 900-275 Pellet Press:

  • Fully stripped down and assessed
  • All seals / gaskets replaced
  • Main components / bearings checked for wear and replaced if necessary
  • 2 x 1500 RPM motors (kw 132)
  • 2 x Roller assemblies included dimpled
  • 1 x Die included 3.5 x 65 new (die size 900 x 275mm, Die surface 7771 cm2)
  • Heat traced door
  • Automatic greasing system for main bearings and rollers Manual die and roller hoist
  • Remote Roller adjustment system Sand Blasted and painted
SOLD

Matador M5 Fully refurbished complete with:

  • 22kw Motor 1500rpm
  • Feeder & Conditioner
  • 2 Complete set of roll assemblies (6)
  • Manual Roll Adjustment
  • Stainless steel door
  • Sandblasted and painted
  • New 6mm die & other part used dies
  • Electrical control panel
  • Set up for wood pelleting
SOLD

CPM 7932-9, SN: 7932-9/5112/331 2001 Factory Refurbished complete with:

  • 250Kw1500 rpm motor
  • 1 set roll assemblies
  • Manual roll adjustment
  • Dump chute
  • New Quill Flange and Die Clamps
  • New Shearpin Housing
  • New feed cone
  • New Stiffening Ring
  • New Front Roll Support Plate
  • New Door Liner
  • Manual die hoist
  • All New bearings & seals
  • Reservoir Greasing System
  • Sandblasted & painted
  • Die size I/D825.5mm x track 240mm
SOLD

Fully Refurbished CPM 7122 oil Lubricated Main Shaft complete with:

  • 160Kw 1500 rpm motor
  • 1 complete set roll assemblies
  • Manually operated die and roll hoist
  • Manual roll adjustment
  • Dump Chute
  • Reservoir greasing system with 50kgs grease pump
  • Sandblasted and painted
  • Die Size I/D 572 mm x 116 mm Working Width

MORE CPM 7000 PRESSES AVAILABLE SOON. CONTACT CFE FOR DETAILS

SOLD

CPM 3020-6 Fully Refurbished complete with:

  • 132 KW Motor 1480 rpm
  • 1 Complete set of roll assemblies
  • Manually operated die & roller hoist
  • Force Feeder or Dump Chute
  • Manual Roll Adjustment
  • Automatic greasing system
  • Sandblasted and painted
  • Die Size I/D 508 mm x 156 mm Working Width

Also available CPM conditioner & Geelen 14 x 14 single Deck Cooler

SOLD

Factory Reconditioned CPM 7930-4 oil lubricated main shaft complete with:

  • 250Kw 1500 rpm Motor
  • Heavy Duty Quill Flange
  • Heavy Duty Die Clamps
  • All seals, Wear Rings & O Rings replaced
  • Dump Chute & Air Cylinder
  • Stiffening Ring
  • Feed Cone & fasteners
  • 2 x Complete Roll Assemblies (dimpled or flute)
  • 50 or 200 Kgs reservoir greasing and alarm system
  • Die Size ID 762mm, Track Width 94mm
  • Sandblasted and Painted
SOLD
Destination:Slovakia

Fully Refurbished CPM 7930-8 Oil Lubricated Main Shaft complete with:

  • 250Kw 1500 rpm motor
  • 1 complete set roll assemblies
  • Manually operated die and roll hoist
  • Manual roll adjustment
  • Dump chute
  • Greasing system with 50kgs grease pump
  • Sandblasted and painted
SOLD

Fully Refurbished CPM 7730-6 complete with:

  • 200 KW Motor 1500 rpm
  • 1 Complete set of roll assemblies
  • Manually operated die & roller hoist
  • Manual Roll Adjustment
  • All new bearings and seals fitted
  • Reservoir greasing system
  • Die Clamps
  • CPM Force Feeder
  • Sandblasted and painted

FIRST REFURBISHED PELLET PRESS SOLD TO IVORY COAST



SOLD
Destination: Ivory Coast

Year 2001 Factory Reconditioned CPM 7932-9 complete with:

  • 250 KW Motor 1500 rpm
  • 1 Complete set of roll assemblies
  • Manually operated die & roller hoist
  • Manual Roll Adjustment
  • All new bearings and seals fitted
  • Die Clamps
  • Feed cone
  • CPM Force Feeder (can be replaced with dump chute if required)
  • Sandblasted and painted
  • Die Size I/D 825 mm x 240 mm Working Width, Die surface area: 6,220 cm2

Only operated for 10,000 hours from new

SOLD

Arriving Early 2020: 2017 CPM 7930-4 complete with:

  • 315Kw 1500 rpm Motor
  • Oil Lubricated Rollers system with 1 set roll assemblies
  • Die Clamps
  • Breaker Bars
  • Dump Chute & Air Cylinder
  • Stiffening Ring
  • Feed Cone & fasteners
  • Pneumatic cylinder for QDFC
  • Die Hoist
  • Die Size ID 762mm, Track Width 94mm
  • FULLY SERVICED & CHECKED BY CPM EUROPE
SOLD
